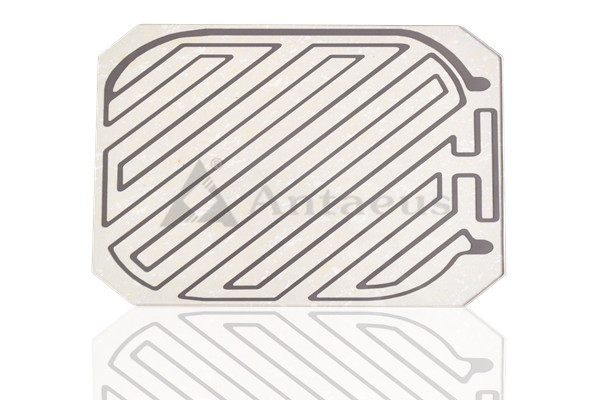

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949

  • 3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-D008
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electronic Ceramic Components / Ceramic Electronic Parts AL2O3 Content 90% - 99%
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 3.7 G/cc - 3.92 G/cc
Hardness 13.8 HV, Gpa - 18 HV, Gpa Thermal Conductivity 25 W/(m K) - 32 W/(m K)
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
High Light

3.92g/Cm3 Electronic Ceramic Components

,

IATF16949 Electronic Ceramic Components

,

IATF16949 ceramic thermal insulator
Leave a Message
Product Description

Electronic Ceramic Components / Ceramic Electronic Parts



1. Description:

Ceramic materials are used in a wide range of applications from power distribution to smartphones.

Glass powder is also added in thick film paste for metallization of electronic components, whereas glass seals are used in certain applications to protect electronic devices from the environment. Flexible glass is being produced for fabrication of flexible devices, such as organic light emitting diodes (OLEDs).

The main applications of ceramics and glass in electrical and electronic applications are illustrated in the table below.:

1) Transportation electrical systems --- Spark plugs

2) Power distribution --- Protective parts for power lines

3) Electronic circuits ---  Capacitors, Resistors, Inductors, Circuit protection devices (for example, metal oxide varistors), High and low-temperature co-fired ceramics



Feature Advantages:

1) High hardness and high density

2) Low thermal conductivity

3) Chemical inertness

4) Good wear resistance

5) High Fracture toughness

6) Good insulation performance

7) High temperature resistance

8) A variety of specifications is available

9) Satisfy various technical requests

10) Lower medium spoilage

11) Stiffness texture

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 3

9.Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 5

11.Shipping and Package:

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 6

12. Our aimed market :

3.92g/cm3 Electronic Ceramic Components thermal insulator IATF16949 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
