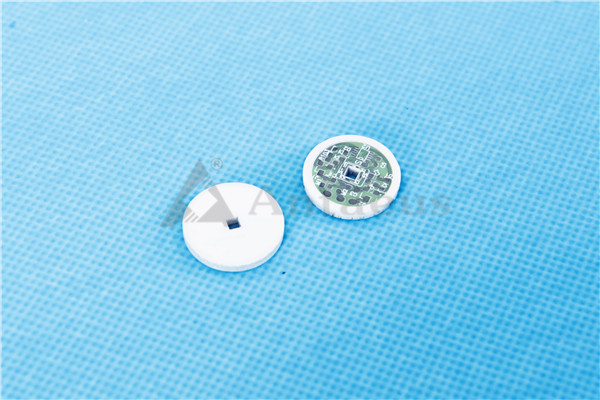

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength

  • 99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-D009
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electronic Ceramic Components / Electronic Ceramics AL2O3 Content 90% - 99%
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 3.7 G/cc - 3.92 G/cc
Hardness 13.8 HV, Gpa - 18 HV, Gpa Thermal Conductivity 25 W/(m K) - 32 W/(m K)
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
High Light

99% Electronic Ceramic Components

,

30 Kpsi Electronic Ceramic Components

,

32 Kpsi alumina Ceramic Components
Leave a Message
Product Description

Electronic Ceramic Components / Ceramic Electronic Parts



1. Description:

Much of the processing and assembly of electronic ceramics are done in areas of the world with very low labor costs. This includes the four types of companies identified in Section 1. These companies make most consumer products, PCBs, and virtually anything with discrete, leaded components. A ‘green’ company with plants all over the world uses the same environmental controls everywhere, making the most stringent regulation a de facto worldwide standard. It also requires vendors and suppliers to do the same. This pressures smaller electronics companies working for large ‘green’ ones to also be environmentally conscious.



2. Feature Advantages:

1) High hardness and high density

2) Low thermal conductivity

3) Chemical inertness

4) Good wear resistance

5) High Fracture toughness

6) Good insulation performance

7) High temperature resistance

8) A variety of specifications is available

9) Satisfy various technical requests

10) Lower medium spoilage

11) Stiffness texture

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 3

9.Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 5

11.Shipping and Package:

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 6

12. Our aimed market :

99% Alumina Electronic Ceramic Components 30-32 Kpsi Tensile Stength 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
