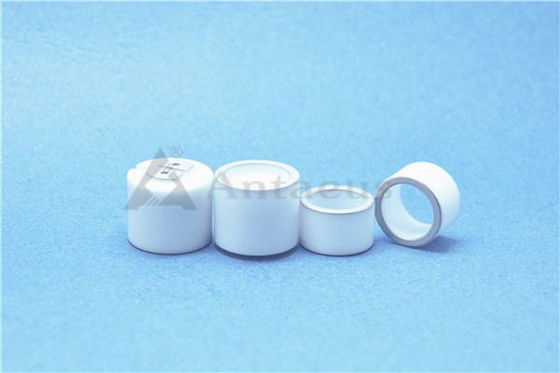

Magnetron 95 Alumina Ceramic Anti Corrosion

  • Magnetron 95 Alumina Ceramic Anti Corrosion
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-M002
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Magnetron Ceramic Material 95% Aluminum Oxide
Density 3.7g/cm3-5.9g/cm3 Power Range ≤7W /cm2
Working Temperature -40℃-125℃ Application Microwave Magnetron Ceramic For Home Electrical Appliances
Working Voltage 3v~480v Thermal Shock Test 1.(Temperature)：-55℃/125℃ 2,(Time)2.2min 3 (Switching Time ) Max 10s 4 (Frequency)：15 Times
Working Life >5000 H
Highlight

Magnetron 95 Alumina Ceramic

,

Anti corrosion 95 Alumina Ceramic

,

Magnetron ceramic heat insulator
Leave a Message
Product Description

Alumina Magnetron Ceramic / Ceramic Parts for Home Electrical Appliances



1. Description:

Alumina Magnetron Ceramic  is a very hard ceramic that is excellent at resisting abrasion and is ideal for wear-resistant inserts or products. It is commonly used as a high temperature electrical insulator, particularly the higher purity grades which offer better resistivity. It also offers good resistance to strong acids and alkalis at elevated temperatures, which makes it ideal for applications where resistance to corrosive substances is required. Some common applications include:

  • Electronic components & substrates
  • High temperature electrical insulators
  • High voltage insulators
  • Laser tubes
  • Machine components
  • Mechanical seals
  • Precision shafts and axles in high wear environments
  • Roller and ball bearings
  • Seal rings
  • Semiconductor parts
  • Shot blast nozzles
  • Thermocouple tubes
  • Tap plates
  • Valve seats
  • Wear components
  • Wire and thread guides
  • Ballistic Armor

2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Inspecting --- Packing

Magnetron 95 Alumina Ceramic Anti Corrosion 0



6. Application Fields:

Microwave Magnetron Ceramic for Home Electrical Appliances , Aerospace and Other Industry!

Magnetron 95 Alumina Ceramic Anti Corrosion 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Magnetron 95 Alumina Ceramic Anti Corrosion 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Magnetron 95 Alumina Ceramic Anti Corrosion 3



9. Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
