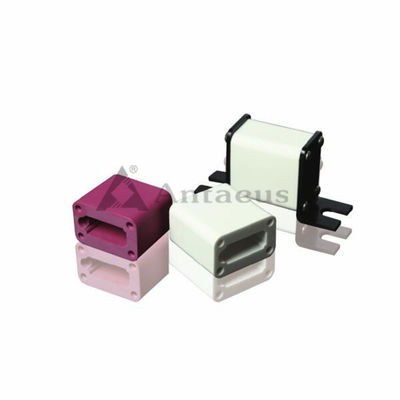

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant

  • 95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant
  • 95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-F006
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms PayPal，T/T,LC
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 95% High Alumina Electrical Ceramic Insulators For Fuse Abrasion Resistant Material Alumina (Aluminum Oxide, Al2O3)
Insulation Resistance 1000M Ω（1000VDC) Dielectric Strength 3000VAC 1 Min
Working Temperature -40℃-125℃ Operate Time ≤30ms
Release Time ≤10ms Shock Resistance Functional 196m/s² (20G Above)
Shock Resistance Destructive 490m/s²(50G Above) Humidity 5～85%RH
Virbration Resistance 10-200HZ，49m/s²
Highlight

Abrasion Resistant Fuse Ceramic

,

95% Fuse Ceramic

,

95% high alumina ceramic
Leave a Message
Product Description

95% High Alumina Electrical Ceramic Insulators For Fuse Abrasion Resistant



1. Description:

Electrical appliances and equipment are protected by the tiny fuses that are installed in their wiring or housing. They break the electrical circuit should something nefarious happen to the current, such as being overloaded due to a power surge during a severe storm, or if a circuit decides to short. The tiny fuse prevents the problem at the source from traveling to an expensive appliance or beloved décor item and destroying its fine electrical systems. It also keeps the item from making a bigger problem, such as fire or water damage if a machine full of wet items fails before the spin cycle. Fuses come in all shapes and sizes.



2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 095% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 195% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 2

3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 3



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 4



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 5



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 6

9.Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

95% High Alumina Electrical Ceramic Insulators for Fuse Abrasion Resistant 7

Loudi Antaeus Electronic Ceramic Co.,Ltd is a fully integrated technical ceramics manufacturer complete with a Ceramic Engineering Department, Development Labs, and Up-to-Date Quality Programs.We can assist with the development of your part, to find an economical solution perfect for your needs.

Precision, Technical Ceramic Insulators

We produce Alumina Ceramic components and assemblies for new energy vehicles ,Zirconia ceramic products . Antaeus Ceramics Company’s processes are dry pressing, extrusion, secondary machining, glazing, and both centerless and flat grinding. We have the finest equipment, enabling us to produce high quality technical ceramics at competitive prices, in the quantities you may require. Antaeus Ceramics offers its engineering abilities to help you with your design and material selection for your unique application.



Application:

These Advanced technical ceramic components find application in a number of industries, some of them being sealing technology, pumps, wire-drawing, battery/ cell manufacturing, sand-blasting, chemical, electronics, textile, automotive, etc.



Customized are welcome according to your drawings or samples.



FAQs (Frequently Asked Questions)


Q1. Are you a factory or trading company?
A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.


Q2: Do you send a sample to check?
A: Sure, sample in stock is free and freight collect.

Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.



Q4:What is your Capacity?

A:300,000 pcs per day;

Q5: Are the ceramics good quality?
A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.

Q6:What is the Lead time?

A: About 15-35 days,according to the quantities required;



Q7: Is it available to provide customized products?
A:Yes,and we can do OEM and ODM.
