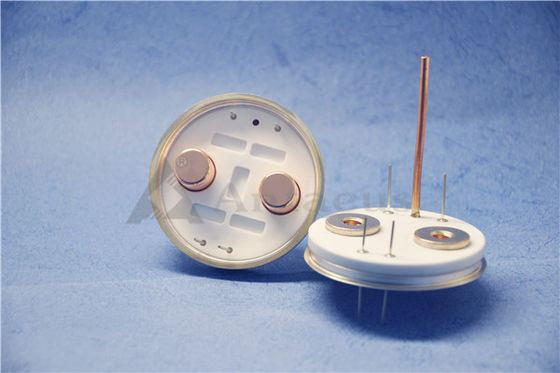

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor

Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-A006
Minimum Order Quantity 1000
Price $1-$8
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chemical Ingredients 95% Alumina Ceramic Housing Max. Use Temp. 1650℃
Bulk Density 3.6g/cm3-3.9g/cm3 Water Absorption 0%
ROHS Hardness ≥85 Flexural Strength 358(52) - 550 Mpa(psix10^3)
Compressive Strength 2068(300) - 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 7.6 - 8.2 / 1X10^-6/℃
Coefficient Of Thermal Conductivity 16-30.4 / W/m.K Thermal Shock Resistance 250℃
Dielectricity Constant 9-9.7 / 1MHz.25℃ Dielectric Strength 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil)
Volume Resistivity >10^13 Ohm-cm Name 95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor
Key Word Brazed Ceramic With Cu Stud And Kovar Usage Metal Brazed Contactor
High Light

3.9g/Cm3 alumina ceramic insulator

,

Al2O3 alumina ceramic insulator

,

3.6g/Cm3 ceramic al2o3

Leave a Message
Product Description

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor



1. Description:

1) Tighter tolerances cost more during manufacturing. Geometric tolerances may look nice on the drawing, but if they are not necessary, they will cost more during manufacturing as well as during inspection.

2) Even though it is easier to hold tighter tolerances on small parts, small I.D.s can cause excessive tool breakage.

3) Wall thickness should be kept to approximately 10% of O.D. or a minimum of .020 when possible.

4) This includes the distance between the holes, as well as the distance from the I.D. to the O.D.

5) Depth of blind holes should not be greater than 50% of the overall length.

6) There should be as few steps or levels as possible in your new design.

7) Multiple levels cause areas of compaction that may result in changes in green press density.

8)These changes in density may cause the fired part to be porous, resulting in shrinkage differences that can affect the dimensional stability.



2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance

17) A variety of specifications is available

18) Satisfy various technical requests

19) Lower medium spoilage

20) Stiffness texture

21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 095% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 1

4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio -   - - 0.20~0.25 0.20~0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃~100℃ ×10-6 K-1 - - -   ≤8 -
20℃~500℃ ×10-6 K-1 6.5~7.5 6.5~7.5 6.5~7.5 6.5~11.2 - -
20℃~800℃ ×10-6 K-1 6.5~8.0 6.5~8.0 6.3~7.3   - 4
20℃~1200℃ ×10-6 K-1 - 7.0~8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90~110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - ≤7.5 -
1MHz 50℃ - - 9.0~10 - - - -
10GHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 2



6. Application Fields:

New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 3



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 4



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 5

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 6





10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 7

11Shipping and Package:

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 8

12. Our aimed market:

95% Alumina Ceramic Housing, Brazed Ceramic With Cu Stud And Kovar - Metal Brazed Contactor 9

Loudi Antaeus Electronic Ceramic Co.,Ltd is a fully integrated technical ceramics manufacturer complete with a Ceramic Engineering Department, Development Labs, and Up-to-Date Quality Programs.We can assist with the development of your part, to find an economical solution perfect for your needs.

Precision, Technical Ceramic Insulators

We produce Alumina Ceramic components and assemblies for new energy vehicles ,Zirconia ceramic products . Antaeus Ceramics Company’s processes are dry pressing, extrusion, secondary machining, glazing, and both centerless and flat grinding. We have the finest equipment, enabling us to produce high quality technical ceramics at competitive prices, in the quantities you may require. Antaeus Ceramics offers its engineering abilities to help you with your design and material selection for your unique application.



Notes:Please contact with us for more details freely when you have any inquiry!





FAQs (Frequently Asked Questions)


Q1. Are you a factory or trading company?
A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.


Q2: Do you send a sample to check?
A: Sure, sample in stock is free and freight collect.

Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.



Q4:What is your Capacity?

A:300,000 pcs per day;

Q5: Are the ceramics good quality?
A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.

Q6:What is the Lead time?

A: About 15-35 days,according to the quantities required;



Q7: Is it available to provide customized products?
A:We can do OEM and ODM.



Notes:please feel free to contact us for more details when you have any inquiry!
