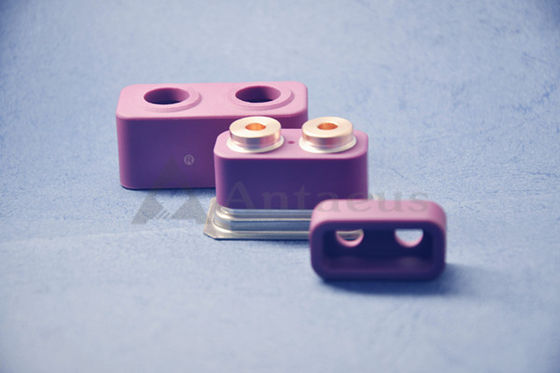

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car

Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-K029
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chemical Ingredients Al2O3 Max. Use Temp. 1650℃
Bulk Density 3.6g/cm3-3.9g/cm3 Water Absorption 0%
ROHS Hardness ≥85 Flexural Strength 358(52) - 550 Mpa(psix10^3)
Compressive Strength 2068(300) - 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 7.6 - 8.2 / 1X10^-6/℃
Coefficient Of Thermal Conductivity 16-30.4 / W/m.K Thermal Shock Resistance 250℃
Dielectricity Constant 9-9.7 / 1MHz.25℃ Dielectric Strength 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil)
Volume Resistivity >10^13 Ohm-cm
High Light

3.6g/Cm3 Ceramic Housing

,

Al2O3 Ceramic Housing

,

Relay Alumina Ceramic parts

Leave a Message
Product Description

EV Alumina Ceramic Relay Housing / High Voltage DC Ceramic Contactor



1. Description:

To be considered an electrical insulator, there must be an absence of electrical conduction, with the emphasis on the word “absence.” Alumina is often the ceramic of choice as it is not only inherently non-conductive, it also possesses a high mechanical strength. However, many critical applications require much more than just these inherent material properties. They require the knowledge Ceramco engineers into all highly specialized OEM ceramic parts fulfilling these needs.

2. Feature Advantages:

1) Good advanced ceramic materials

2) High welding sealing performance

3) Satisfy various technical requests

4) Lower medium spoilage

5) Stiffness texture

6) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio -   - - 0.20~0.25 0.20~0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃~100℃ ×10-6 K-1 - - -   ≤8 -
20℃~500℃ ×10-6 K-1 6.5~7.5 6.5~7.5 6.5~7.5 6.5~11.2 - -
20℃~800℃ ×10-6 K-1 6.5~8.0 6.5~8.0 6.3~7.3   - 4
20℃~1200℃ ×10-6 K-1 - 7.0~8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90~110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - ≤7.5 -
1MHz 50℃ - - 9.0~10 - - - -
10GHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 0



6. Application Fields:

New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 4





10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 5

11Shipping and Package:

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 6

12. Our aimed market:

Relay Parts Al2O3 Alumina Ceramic Housing 3.6g/cm3-3.9g/cm3 For Electric car 7



Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
