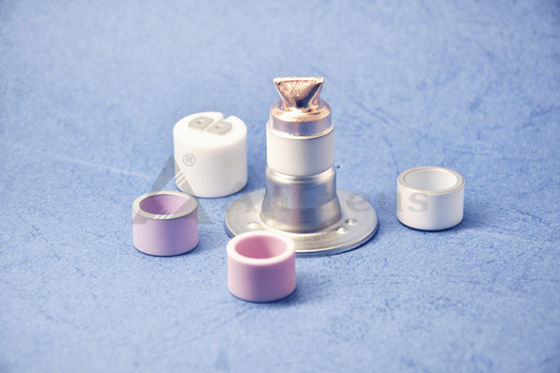

95% Microwave Magnetron Ceramic Component High Precision

  • 95% Microwave Magnetron Ceramic Component High Precision
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-M035
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Magnetron Ceramic Material Alumina (Aluminum Oxide, Al2O3)
Density 3.7g/cm3-5.9g/cm3 Power Range ≤7W /cm2
Working Temperature -40℃-125℃ Pressure ≦ 10-3Pa
Working Voltage 3v~480v Thermal Shock Test 1.(Temperature)：-55℃/125℃ 2,(Time)2.2min 3 (Switching Time ) Max 10s 4 (Frequency)：15 Times
Working Life >5000 H
Highlight

95% Magnetron Ceramic

,

High precision Magnetron Ceramic

,

Magnetron Precision Ceramic Components
Leave a Message
Product Description

Home Electrical Microwave Magnetron Ceramic / Special Ceramic Parts

1. Description:

Table 11 lists some typical permanent-magnet materials. The alnicos are brittle and hence can be used only in cast or sintered form. The hexagonal ferrites are oxides having the general formula MO·6Fe2O3, where M is barium or strontium. The magnets are prepared by ceramic techniques and are often called ceramic magnets. Large numbers of low-cost ferrite magnets are bonded in plastics and widely used in door catches, wall magnets, refrigerator door gaskets, and toys.



2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Inspecting --- Packing

95% Microwave Magnetron Ceramic Component High Precision 0



6. Application Fields:

Microwave Magnetron Ceramic for Home Electrical Appliances , Aerospace and Other Industry!

95% Microwave Magnetron Ceramic Component High Precision 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

95% Microwave Magnetron Ceramic Component High Precision 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

95% Microwave Magnetron Ceramic Component High Precision 3



9. Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
