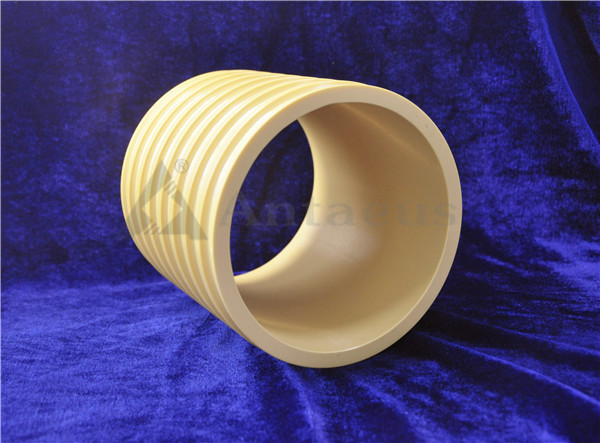

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts

  • Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-Z010
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Zirconia Ceramic Parts / Structural Machining Ceramic Parts Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
Highlight

16 KV/mm Zirconia Ceramic Parts

,

20 KV/mm Zirconia Ceramic Parts

,

16 KV/mm Zirconia Ceramic Components
Leave a Message
Product Description

Structural Machining Zirconia Ceramic Material Components IATF16949





1. Description:

Advanced ceramic materials are produced using highly refined and purified powders that, in many cases, are synthetically produced using high temperatures or chemical reactions. When formed and sintered properly these powders result in product that are very strong, very high in abrasion resistance, can withstand high use temperatures, very good chemical resistance, and very stable.

Advanced ceramics such as alumina, aluminum nitride, zirconia, silicon carbide, silicon nitride and titania-based materials, each with their own specific characteristics, offer a high-performance, economic alternative to conventional materials such as glass, metals and plastics.



2. Feature Advantages:

1) High density.

2) High fracture toughness .

3) High hardness High Mechanical Strength.

4) Low thermal conductivity Excellent insulation .

5) Good Wear resistance.

6) Resistant to Corrosion and Chemical Attack.

7) Extreme Temperature Stability.

8) Outstanding Electrical and Electronic Properties.



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 5

11.Shipping and Package:

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 6

12. Our aimed market :

Dielectric Strength 16 KV/mm - 20 KV/mm Zirconia Ceramic Parts 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
