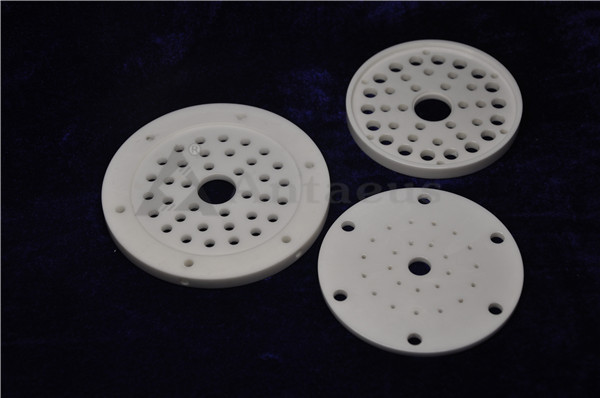

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive

  • Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-Z038
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Zirconia Ceramic Parts / Structural Machining Ceramic Parts Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
High Light

Zirconia Ceramic Parts Corrosion Resistant

,

330 Kpsi Compressive Zirconia Ceramic Parts
Leave a Message
Product Description

Zirconia Drawing Machine Tower Round , Wire Wheels , Reel.



1. Description:

Small-scale production of zirconia depends on the component’s geometry. As such, three common processing routes are used: injection moulding, precision grinding and laser cutting. Injection moulding is suitable for large-scale production of zirconia and laser cutting is a relatively simple process. The laser is typically limited to a 1mm thickness that its can go through. This form of zirconia is extensively used in the electronics industry. With expensive tooling, a high degree of dimensional precision can be obtained.

2. Feature Advantages:

1) High density.

2) High fracture toughness .

3) High hardness High Mechanical Strength.

4) Low thermal conductivity Excellent insulation .

5) Good Wear resistance.

6) Resistant to Corrosion and Chemical Attack.

7) Extreme Temperature Stability.

8) Outstanding Electrical and Electronic Properties.



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 5

11.Shipping and Package:

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 6

12. Our aimed market :

Corrosion Resistant Zirconia Ceramic Parts 300 Kpsi - 330 Kpsi Compressive 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
