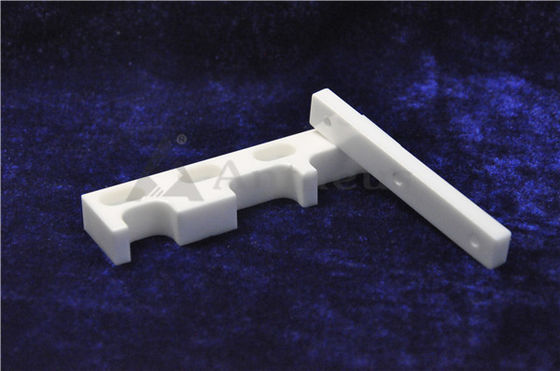

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion

Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-A047
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chemical Ingredients Al2O3 Max. Use Temp. 1650℃
Bulk Density 3.6g/cm3-3.9g/cm3 Water Absorption 0%
ROHS Hardness ≥85 Flexural Strength 358(52) - 550 Mpa(psix10^3)
Compressive Strength 2068(300) - 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 7.6 - 8.2 / 1X10^-6/℃
Coefficient Of Thermal Conductivity 16-30.4 / W/m.K Thermal Shock Resistance 250℃
Dielectricity Constant 9-9.7 / 1MHz.25℃ Dielectric Strength 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil)
Volume Resistivity >10^13 Ohm-cm
High Light

99% Alumina Oxide Ceramics Products

,

3.6g/cm3 Alumina Oxide Ceramics Products

,

Anti Corrosion Alumina Ceramic Components

Leave a Message
Product Description

High Fracture Toughness 99% Al2O3 Ceramic Products




1. Description:

Alumina Ceramics are widely used because of their chemical stability, which they maintain at high temperatures. It is an insoluble material that is resistant to acids, alkaline, and other chemicals. For these reasons, several million tons of Alumina Ceramic are produced every year. Over the years, Alumina Ceramics have been put through several tests to determine its chemical resistance. The high purity of Alumina Ceramics creates such strong bonds that it is not susceptible to any form of chemical damage.Though Alumina Ceramics have existed for many years, experts and processors are still exploring possible uses for this versatile material. Since it is produced from naturally occurring compounds, it is a perfect solution to the care and production of vital components and structures. In the years to come, it is very possible that Alumina Ceramics will increase in its usage and have an even greater impact on product production.

2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance

17) A variety of specifications is available

18) Satisfy various technical requests

19) Lower medium spoilage

20) Stiffness texture

21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio -   - - 0.20~0.25 0.20~0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃~100℃ ×10-6 K-1 - - -   ≤8 -
20℃~500℃ ×10-6 K-1 6.5~7.5 6.5~7.5 6.5~7.5 6.5~11.2 - -
20℃~800℃ ×10-6 K-1 6.5~8.0 6.5~8.0 6.3~7.3   - 4
20℃~1200℃ ×10-6 K-1 - 7.0~8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90~110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - ≤7.5 -
1MHz 50℃ - - 9.0~10 - - - -
10GHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 0



6. Application Fields:

New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 4





10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 5

11Shipping and Package:

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 6

12. Our aimed market:

High Density 99% Alumina Oxide Ceramics Products Anti Corrosion 7



Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
