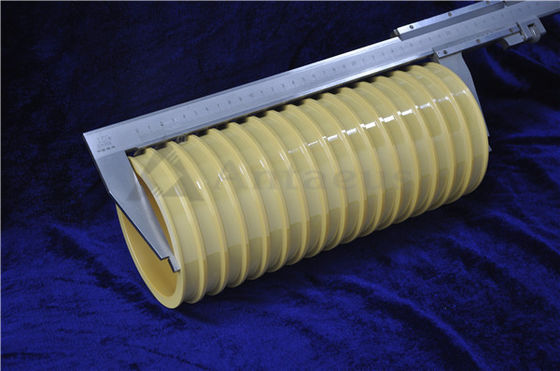

CNC Machinning Industry Custom Ceramic Parts 99% Alumina

  • CNC Machinning Industry Custom Ceramic Parts 99% Alumina
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-C004
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customized Ceramic Component/ 99 Alumina Ceramic Parts / Structural Machining Ceramic Parts/ Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural Strength (N/mm2 ) >350 Mpa
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
Highlight

CNC Machinning Custom Ceramic Parts

,

99% Alumina Custom Ceramic Parts

,

Industry 99% Alumina Ceramic Parts
Leave a Message
Product Description

CNC Machinning Customized Industry Ceramic 99% Alumina Component

1. Description:

Alumina is produced by firing a tightly packed powder form of Al2O3 which includes some binder material. Commercially available grades range from 90% up to 99.95% with the higher purity generating somewhat higher hardness. It is possible to machine alumina using diamond grinding techniques. Polishing is also possible, with the degree attainable affected by alumina grain size and production technique, whether pressed or extruded.

2. Feature Advantages:

1) High hardness and high density

2) Low thermal conductivity

3) Chemical inertness

4) Good wear resistance

5) High Fracture toughness

6) High welding sealing performance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 5

11.Shipping and Package:

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 6

12. Our aimed market :

CNC Machinning Industry Custom Ceramic Parts 99% Alumina 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
