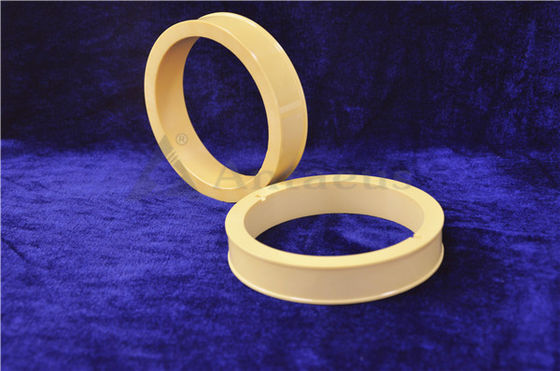

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color

Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-C011
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Customized Ceramic Component/ 99 Alumina Ceramic Parts / Structural Machining Ceramic Parts/ Heat Expansion Rate (10-6K-1) 10
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 6.0g/cm3 And 3.9g/cm3
Fine-machining CNC Forming Process Isostatic Pressing
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
High Light

Yellow Custom Ceramic Parts

,

6.0g/cm3 Custom Ceramic Parts

,

HRA83 Alumina Ceramic Parts

Leave a Message
Product Description

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color

1. Description:

Alumina (Al2 O3) is a common workhorse material in the world of technical ceramics and is utilized in an extensive variety of industries and applications. Alumina’s material properties offer electrical isolation, wear resistance, high temperature resistance, and good mechanical strength. 99.5%, 99.8% and 99.96% alumina bodies offer improved performance over lower purity alumina ceramics in demanding operating conditions.

2. Feature Advantages:

1) High compressive strength.

2) Anti corrosion

3) Abrasion resistance

4) Good advanced ceramic materials

5) Low thermal conductivity

6) Chemical inertness



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio -   - - 0.20~0.25 0.20~0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃~100℃ ×10-6 K-1 - - -   ≤8 -
20℃~500℃ ×10-6 K-1 6.5~7.5 6.5~7.5 6.5~7.5 6.5~11.2 - -
20℃~800℃ ×10-6 K-1 6.5~8.0 6.5~8.0 6.3~7.3   - 4
20℃~1200℃ ×10-6 K-1 - 7.0~8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90~110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - ≤7.5 -
1MHz 50℃ - - 9.0~10 - - - -
10GHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 3

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 5

11.Shipping and Package:

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 6

12. Our aimed market :

Alumina Material Custom Ceramic Parts Good Insulation In Yellow Color 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
