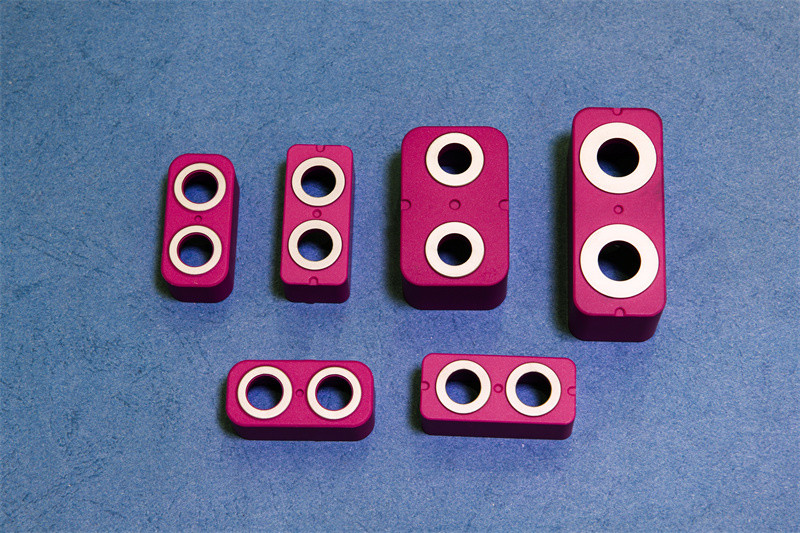

HV DC Brazing Aluminum Ceramics Relay Housing Technical Ceramic Metallized Parts

Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-B009
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Relay Metallized Alumina Ceramic / Ceramic DC Contactor Material Alumina (Aluminum Oxide, Al2O3)
Insulation Resistance 1000M Ω(1000VDC) Dielectric Strength 3000VAC 1 Min
Working Temperature -40℃-125℃ Operate Time ≤30ms
Release Time ≤10ms Shock Resistance Functional 196m/s² (20G Above)
Shock Resistance Destructive 490m/s²(50G Above) Humidity 5~85%RH
Virbration Resistance 10-200HZ,49m/s²
High Light

DC Brazing Aluminum Ceramics

,

Aluminum Ceramics Relay Housing

,

Relay Housing Ceramic Metallized Parts

Leave a Message
Product Description

HV DC Brazing Aluminum Ceramics Relay Housing Technical Ceramic Metallized Parts



1. Description:

Brazing ceramic , it is important to consider the type of metal being used in the joint, as the coefficient of thermal expansion will become very important as the metal and ceramic contract and cool in different ways. Additionally, when designing a ceramic joint, it is important to try and keep the ceramic component in compression as ceramics perform best under this load.



2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio -   - - 0.20~0.25 0.20~0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃~100℃ ×10-6 K-1 - - -   ≤8 -
20℃~500℃ ×10-6 K-1 6.5~7.5 6.5~7.5 6.5~7.5 6.5~11.2 - -
20℃~800℃ ×10-6 K-1 6.5~8.0 6.5~8.0 6.3~7.3   - 4
20℃~1200℃ ×10-6 K-1 - 7.0~8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90~110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - ≤7.5 -
1MHz 50℃ - - 9.0~10 - - - -
10GHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

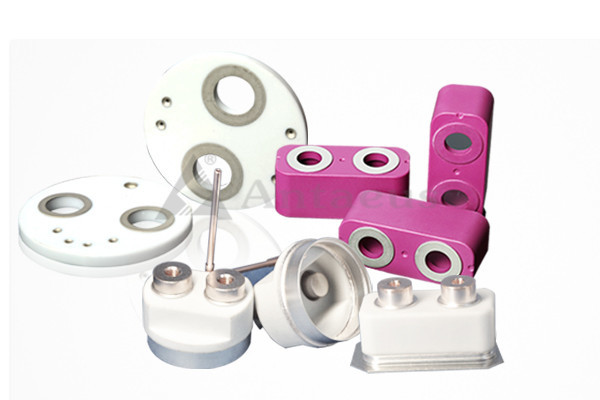

HV DC Brazing Aluminum Ceramics Relay Housing Technical Ceramic Metallized Parts 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

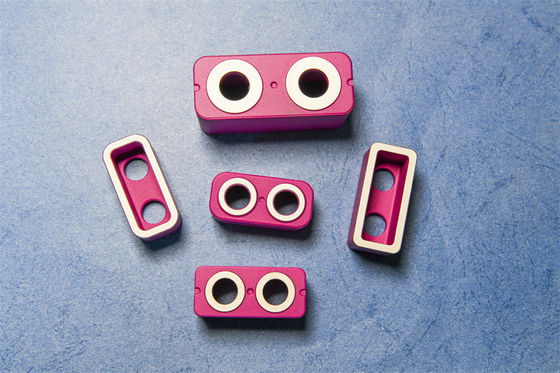

HV DC Brazing Aluminum Ceramics Relay Housing Technical Ceramic Metallized Parts 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

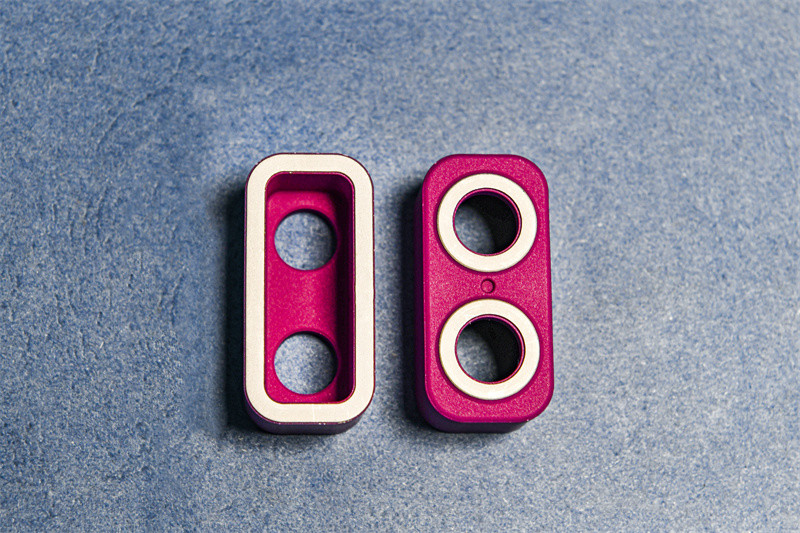

HV DC Brazing Aluminum Ceramics Relay Housing Technical Ceramic Metallized Parts 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

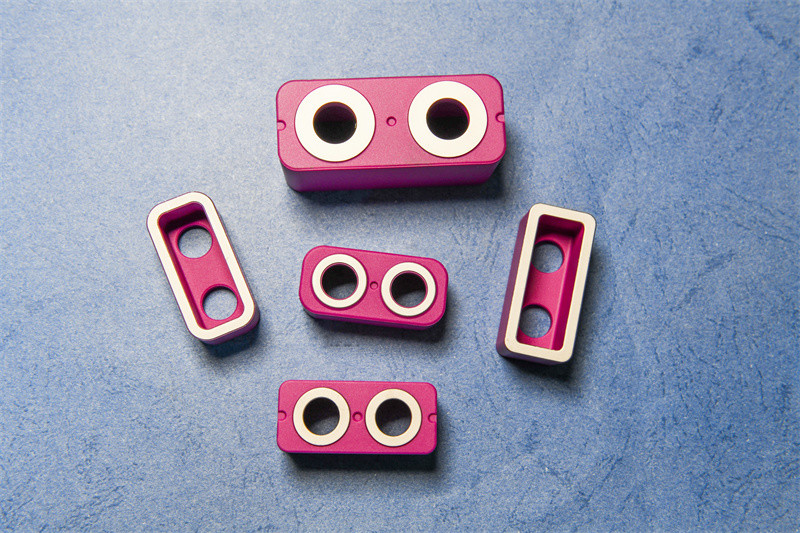

HV DC Brazing Aluminum Ceramics Relay Housing Technical Ceramic Metallized Parts 3

Loudi Antaeus Electronic Ceramic Co.,Ltd is engaged in R&D, design, manufacture, construction, and operations for technical ceramic parts and components.Our main products are electronic ceramic, electro thermal ceramic, high power ceramic resistors, multi-phase electric heating ceramic, zirconia ceramic, LED lighting ceramic,relay alumina ceramic, fuse ceramic,ceramic sealing connector ,biometric ceramics and etc.

These alumina ceramic components or assemblies are used in a wide range of new energy vehicles power, semiconductor, electronic communication,electrical,mechanical,chemical,automotive, textile,military project and other industrial engineering applications, due to their high strength,anti-tensile,anti-seismic,and high sealing performance.

Material: 95%-99%Alumina/Al2O3
Machining accuracy: ±0.001mm

Customized are welcome according to your drawings or samples.



9. Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
