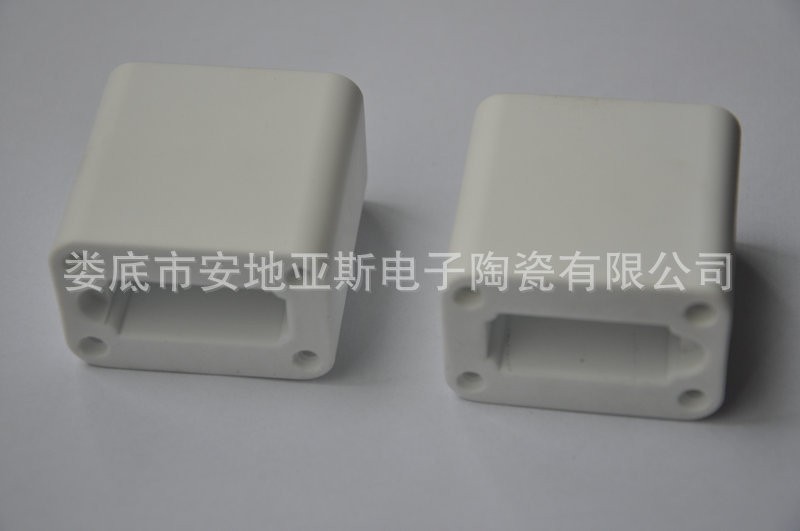

Ivory Metallized Alumina Ceramics Housing For Fuse 32 Kpsi Tensile
| Place of Origin | Hunan,China |
|---|---|
| Brand Name | Antaeus |
| Certification | / |
| Model Number | AD-C0815 |
| Minimum Order Quantity | 100 |
| Price | $1-$10 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Delivery Time | 15-45 days |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Customized Ceramic Component/ 99 Alumina Ceramic Parts / Structural Machining Ceramic Parts/ | Heat Expansion Rate (10-6K-1) | 10 |
|---|---|---|---|
| Tensile | 30 Kpsi - 32 Kpsi | Flexural | 55 Kpsi - 60 Kpsi |
| Compressive | 300 Kpsi - 330 Kpsi | Density | 6.0g/cm3 And 3.9g/cm3 |
| Fine-machining | CNC | Forming Process | Isostatic Pressing |
| C.O.T.E | 75 In / In°C (x10^7) - 78 In / In°C (x10^7) | Working Temperature | 1500 °C - 1750 °C |
| Dielectric Constant | 9.5 - 9.8 | Volume Resistivity | >10^14 Ohm-cm |
| Dielectric Strength | 16 KV/mm - 20 KV/mm | Color | White |
| High Light | Ivory Metallized Alumina Ceramics Housing,Alumina Ceramics Housing |
||
Product Description
High Quality Factory Ivory Metallized Alumina Ceramics Housing For Fuse
1. Description:
This product is developed and produced by Antaeus, it has obtained the Chinese utility model patent with patent number ZL201521024255.8.
It uses high-purity toughened alumina ceramic, suitable for ceramic thread opening technology and brazing different materials such as copper and alloy, and can meet both seismic and tensile requirements, and it is also resistant to high current and arc impact, It meets the reliable sealing and insulation standards of DC high-voltage relays.
Now it is an excellent technical solution in the field of new energy vehicles and DC high-voltage electronic control.
2. Feature Advantages:
- High precision and good air tightness for sealing
- Outstanding hermetic sealing with hydrogen gas filling, 100% hellium leaking tested
- Good insulation, anti-magnetic, static electricity-free character
- Excellent magnetic quenching capability for high votage and large current
- Excellent thermal shock resistance and good thermal stability
- Outstanding strength and toughness for 200K life cycles
- Complying with CE, CQC, ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional R&D team is available for your requests of various vacuum ceramic components
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing
6. Application Fields:
Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.
7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
8. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery
10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
11.Shipping and Package:
12. Our aimed market :
Loudi Antaeus Electronic Ceramic Co.,Ltd is a fully integrated technical ceramics manufacturer complete with a Ceramic Engineering Department, Development Labs, and Up-to-Date Quality Programs.We can assist with the development of your part, to find an economical solution perfect for your needs.
We produce Alumina Ceramic components and assemblies,Zirconia ceramic products . Antaeus Ceramics Company’s processes are dry pressing, extrusion, secondary machining, glazing, and both centerless and flat grinding. We have the finest equipment, enabling us to produce high quality technical ceramics at competitive prices, in the quantities you may require. Antaeus Ceramics offers its engineering abilities to help you with your design and material selection for your unique application.
FAQs (Frequently Asked Questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.
Q2: Do you send a sample to check?
A: Sure, sample in stock is free and freight collect.
Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.
Q4:What is your Capacity?
A:300,000 pcs per day;
Q5: Are the ceramics good quality?
A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.
Q6:What is the Lead time?
A: About 15-35 days,according to the quantities required;
Q7: Is it available to provide customized products?
A:We can do OEM and ODM.
Notes:please feel free to contact us for more details when you have any inquiry!
