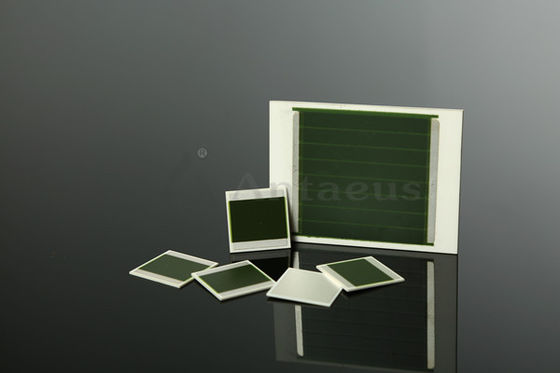

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3

  • Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3
Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-D012
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Electronic Ceramic Components / Electronic Ceramics AL2O3 Content 90% - 99%
Tensile 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Compressive 300 Kpsi - 330 Kpsi Density 3.7 G/cc - 3.92 G/cc
Hardness 13.8 HV, Gpa - 18 HV, Gpa Thermal Conductivity 25 W/(m K) - 32 W/(m K)
C.O.T.E 75 In / In°C (x10^7) - 78 In / In°C (x10^7) Working Temperature 1500 °C - 1750 °C
Dielectric Constant 9.5 - 9.8 Volume Resistivity >10^14 Ohm-cm
Dielectric Strength 16 KV/mm - 20 KV/mm
High Light

95% Ceramic Heat Insulator

,

AL2O3 Ceramic Heat Insulator

,

AL2O3 Alumina Ceramic Plate
Leave a Message
Product Description

Electronic Ceramic Components / Ceramic Electronic Parts



1. Description:

Electronic ceramics with a long history of technological applications in the ceramic capacitor industry. The Ti-rich region (>50% TiO2) of the BaO–TiO2 gives few compositions which exhibit [1–6] good temperature compensation with very good relative permittivity and low dielectric loss at radio frequencies. In 1947, Bunting and co-workers reported [1, 2] a low-loss temperature-compensated composition containing 83.3 mol% TiO2 with ɛr = 37 at 1 MHz.



2. Feature Advantages:

1) High hardness and high density

2) Low thermal conductivity

3) Chemical inertness

4) Good wear resistance

5) High Fracture toughness

6) Good insulation performance

7) High temperature resistance

8) A variety of specifications is available

9) Satisfy various technical requests

10) Lower medium spoilage

11) Stiffness texture

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 3

9.Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 5

11.Shipping and Package:

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 6

12. Our aimed market :

Electronic Alumina Ceramic Heat Insulator Plate 95% AL2O3 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
