Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber

Place of Origin Hunan,China
Brand Name Antaeus
Certification /
Model Number AD-K035
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Inner vacuum packaging, outside carton.
Delivery Time 15-45 days
Payment Terms T/T or Negotiation
Supply Ability Full Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chemical Ingredients Al2O3 Max. Use Temp. 1650℃
Bulk Density 3.6g/cm3-3.9g/cm3 Water Absorption 0%
ROHS Hardness ≥85 Flexural Strength 358(52) - 550 Mpa(psix10^3)
Compressive Strength 2068(300) - 2600(377) Mpa(psix10^3) Coefficient Of Thermal Expansion 7.6 - 8.2 / 1X10^-6/℃
Coefficient Of Thermal Conductivity 16-30.4 / W/m.K Thermal Shock Resistance 250℃
Dielectricity Constant 9-9.7 / 1MHz.25℃ Dielectric Strength 8.3(210) - 8.7(220) / Ac-kV/mm(ac V/mil)
Volume Resistivity >10^13 Ohm-cm
High Light

Electric And Electronics Ceramic Housing

,

Ceramic Housing For Arc Extinguishing Chamber

Leave a Message
Product Description

Hot sale Electric and Electronics Alumina Ceramics housing for High Voltage Vacuum Arc Extinguishing Chamber



1. Description:

A comparison of the technological, economic, public policy and environmental factors of HVDC and HVAC interregional transmission. Considering the financial and technical aspect the DC long transmission line is better than AC long transmission line.

2. Feature Advantages:

1) Good advanced ceramic materials

2) High welding sealing performance

3) High hardness and high density

4) Low thermal conductivity

5) Chemical inertness

6) Good wear resistance

7) High Fracture toughness

8) Good insulation performance

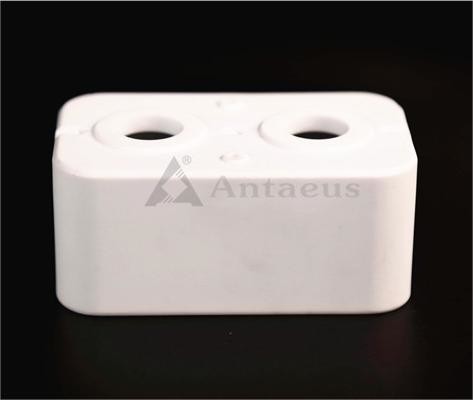

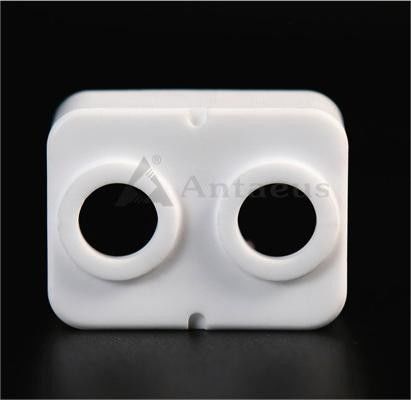

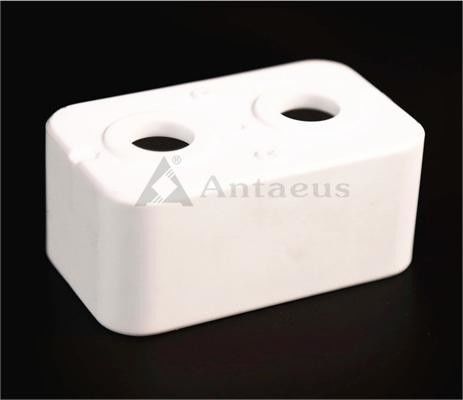

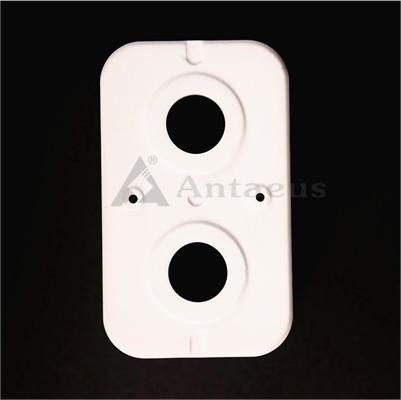

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 0Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 1Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 2Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 3



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio -   - - 0.20~0.25 0.20~0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃~100℃ ×10-6 K-1 - - -   ≤8 -
20℃~500℃ ×10-6 K-1 6.5~7.5 6.5~7.5 6.5~7.5 6.5~11.2 - -
20℃~800℃ ×10-6 K-1 6.5~8.0 6.5~8.0 6.3~7.3   - 4
20℃~1200℃ ×10-6 K-1 - 7.0~8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90~110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - ≤7.5 -
1MHz 50℃ - - 9.0~10 - - - -
10GHz 20℃ - 9.0~10.5 9.0~10 9.0~10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 4



6. Application Fields:

New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 5



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 6



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 7

9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 8





10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 9

11Shipping and Package:

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 10

12. Our aimed market:

Electric And Electronics Alumina Ceramic Housing For Vacuum Arc Extinguishing Chamber 11

Loudi Antaeus Electronic Ceramic Co.,Ltd was established in 2004 and engaged in R&D, design, manufacture, sales and export ceramic parts and components.Our main products are relay ceramic assemblies, fuse ceramic,electronic ceramic, electro thermal ceramic,high power ceramic resistors, multi-phase electric heating ceramic, zirconia ceramic, LED lighting ceramic,ceramic sealing connector ,biometric ceramics and etc.

Antaeus has more than 80 patented technologies and one "New Energy Advanced Ceramic Technology Center" and one "Testing Center".



Application:

These alumina ceramics or assemblies are used in a wide range of new energy vehicles power,semiconductor,electronic communication ,electrical,mechanical,chemical,

automotive, textile,military and industrial engineering applications, due to their high strength,anti-tensile,anti-seismic,and high sealing performance.



Customized are welcome according to your drawings or samples.



FAQs (Frequently Asked Questions)


Q1. Are you a factory or trading company?
A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.


Q2: Do you send a sample to check?
A: Sure, sample in stock is free and freight collect.

Q3: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.



Q4:What is your Capacity?

A:300,000 pcs per day;

Q5: Are the ceramics good quality?
A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.

Q6:What is the Lead time?

A: About 15-35 days,according to the quantities required;



Q7: Is it available to provide customized products?
A:We can do OEM and ODM.



Notes:please feel free to contact us for more details when you have any inquiry!
